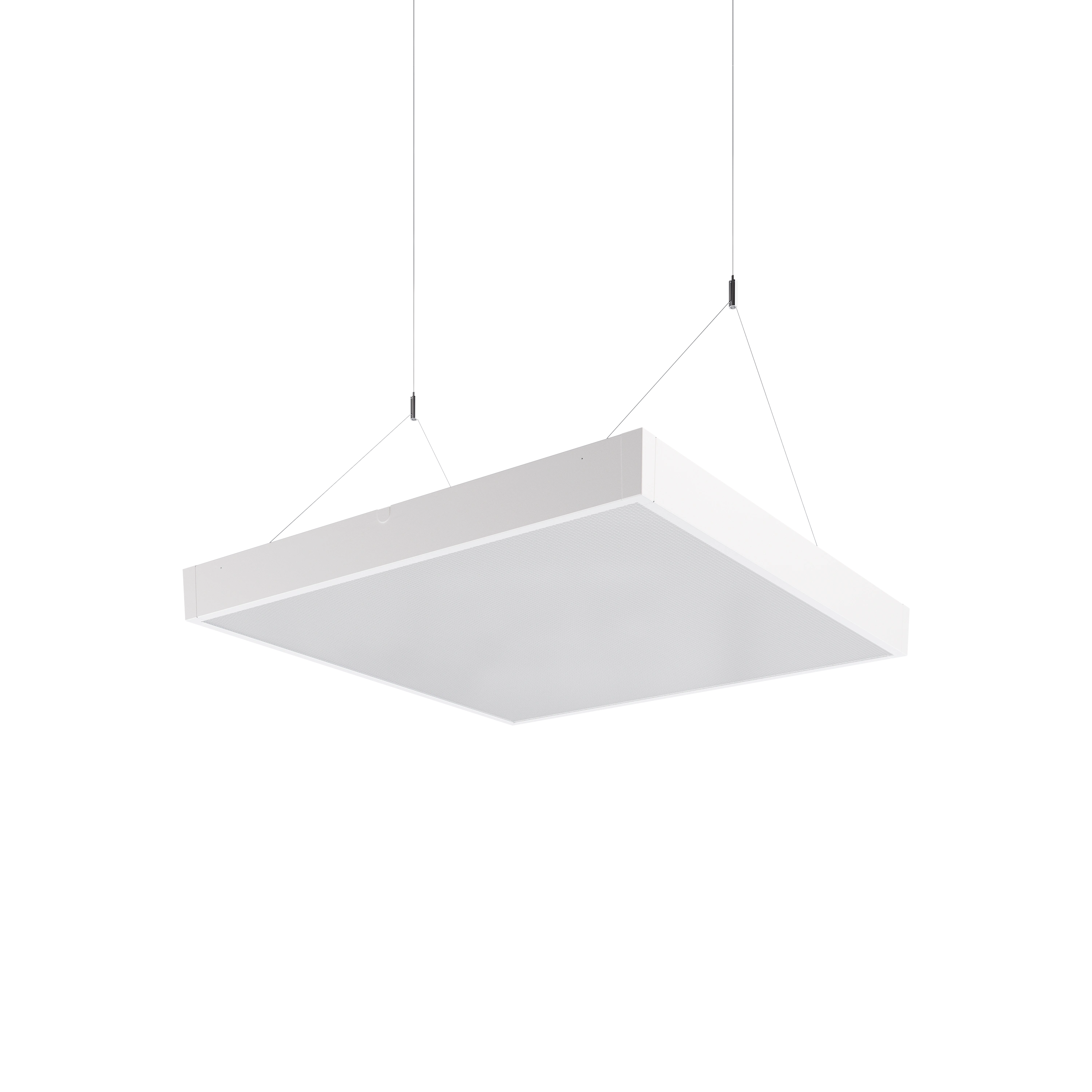

Multilume Slim Pendant

A pendant luminaire with direct light. Available with Opal or Delta louvres.

Installation

Wire pendant. Luminaire bracket with friction lock included in the luminaire.

Connection

Connection in separate ballast box. Snap-in terminal block 5 x 1,5 mm², through-wiring possible. The luminaire housing and driver are connected via a Quick Connection System.

Design

Luminaire body of white enamelled sheet steel (RAL 9016). Louvre frame of white enamelled steel (RAL 9016) structure.

Louvre

Delta – microprism louvre in UV stabil polystyrene.
Opal – plate in frosted UV stabil polystyrene.

Light distribution

Direct 100 %.

Dimming

DALI/phase-pulse control as standard. CLO (Constant Light Output) as standard.

Accessories

Fittings and additional components sold separately.

Miscellaneous

Class III applies to the luminaire body only. The supplied driver should be connected to protective earth. CLO (Constant Light Output) means that the luminaire provides the same amount of light for the duration of its specified burn-time.

Media

Dwide Pendant Direct 600x600 – Installation

Multilume

Multilume is Fagerhult’s extensive family of LED luminaires for recessed mounting. Multilume’s balanced work and general lighting delivers excellent light ergonomics, constantly updated with the latest in LED technology....

More about the family Multilume

Document

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Wire suspension for support rails L: 1,5m Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 91426
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – small + large, transparent mains cable (96382+96390) 95355
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large round ceiling cup for T-bars 25 mm, white mains cable/each 96388
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388) 95356
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large square ceiling cup, white mains cable/each 96374
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376) 95364
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large square ceiling cup, transparent mains cable/each 96378
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379) 95365
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large square ceiling cup for T-bars 25 mm, transparent mains cable/each 96379
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – small + large, white mains cable (96370+96374) 95362
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large square ceiling cup for T-bars 25 mm, white mains cable/each 96376
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391) 95353
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large round ceiling cup, white mains cable/each 96386
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379) 95361
Wire suspension for continuous installation L: 1,4m Large round ceiling cup for T-bars 25 mm/each 96385
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – small + large, transparent mains cable (96370+96378) 95363
Wire suspension for continuous installation L: 1,4m Large square ceiling cup for T-bars 25 mm/each 96373
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376) 95360
Ceiling Cup Round small wire Wire suspension for continuous installation L: 1,4m Small round ceiling cup/each 96382
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – large, transparent mains cable (96371+96378) 95359
Wire suspension for continuous installation L: 1,4m Large square ceiling cup/each 96371
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Square ceiling cups – large, white mains cable (96371+96374) 95358
Wire suspension for continuous installation L: 1,4m Small round ceiling cup for T-bars 25 mm/each 96384
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391) 95357
Wire suspension for continuous installation L: 1,4m Small square ceiling cup for T-bars 25 mm/each 96372
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388) 95352
Wire suspension for continuous installation L: 1,4m Small square ceiling cup/each 96370
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – large, white mains cable (96383+96386) 95350
Wire suspension for continuous installation L: 1,4m Large round ceiling cup/each 96383
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large round ceiling cup, transparent mains cable/each 96390
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m Large round ceiling cup for T-bars 25 mm, transparent mains cable/each 96391
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – large, transparent mains cable (96383+96390) 95351
Wire suspension for single installation, 3x0.75 mm² L: 1,4m Round ceiling cups – small + large, white mains cable (96382+96386) 95354
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389) 95372
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large round ceiling cup, white mains cable/each 96387
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381) 95381
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large round ceiling cup for T-bars 25 mm, transparent mains cable/each 96393
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377) 95380
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large round ceiling cup for T-bars 25 mm, white mains cable/each 96389
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – small + large, transparent mains cable (96370+96380) 95379
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large square ceiling cup, white mains cable/each 96375
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – small + large, white mains cable (96370+96375) 95378
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large square ceiling cup, transparent mains cable/each 96380
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large square ceiling cup for T-bars 25 mm, transparent mains cable/each 96381
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381) 95377
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large square ceiling cup for T-bars 25 mm, white mains cable/each 96377
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377) 95376
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m Large round ceiling cup, transparent mains cable/each 96392
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – large, transparent mains cable (96371+96380) 95375
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Square ceiling cups – large, white mains cable (96371+96375) 95374
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389) 95368
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393) 95373
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – small + large, white mains cable (96382+96387) 95370
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – large, transparent mains cable (96383+96392) 95367
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – small + large, transparent mains cable (96382+96392) 95371
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – large, white mains cable (96383+96387) 95366
Wire suspension for single installation, 5x0.75 mm² L: 1,4m Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393) 95369
Ceiling bracket in chrome with wire Wire suspension with ceiling bracket in chrome, L=1.5 m/pair 91696
Cover plate for flat upper surface Cover plate for flat upper surface, white (RAL 9016). 41039
